With deep cooperation with many big international wholesalers,SXM is expected to develop full range of bearings to fulfil different market needs. SXM is strict on the bearings out of our production and keep the same standard of all the bearings marked SXM. Till now, we have several long term reliable partner to produce high precision angular contact ball bearing and make full stock for us.

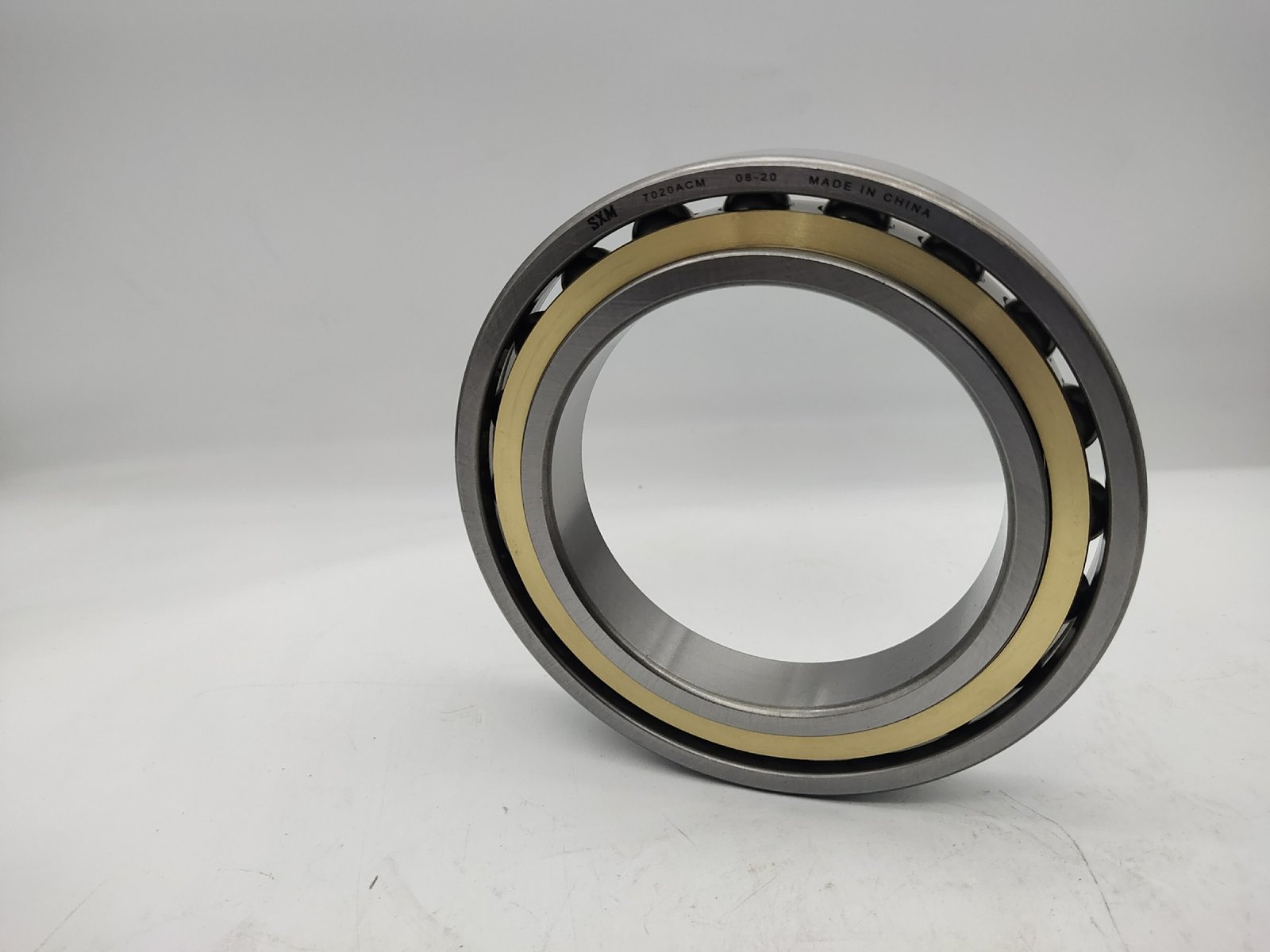

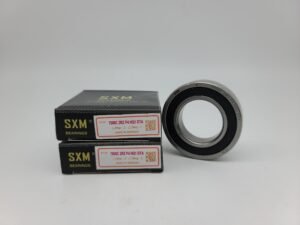

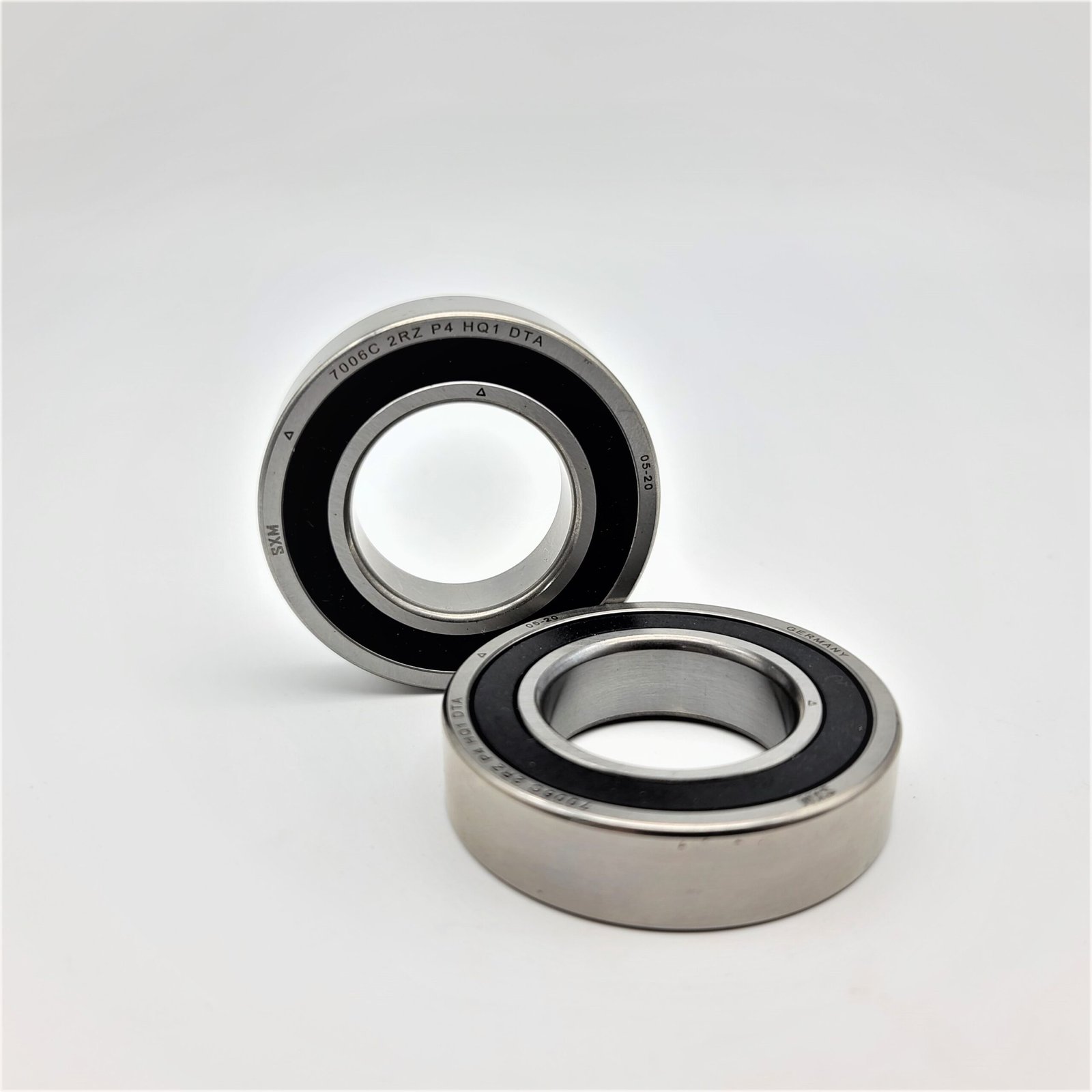

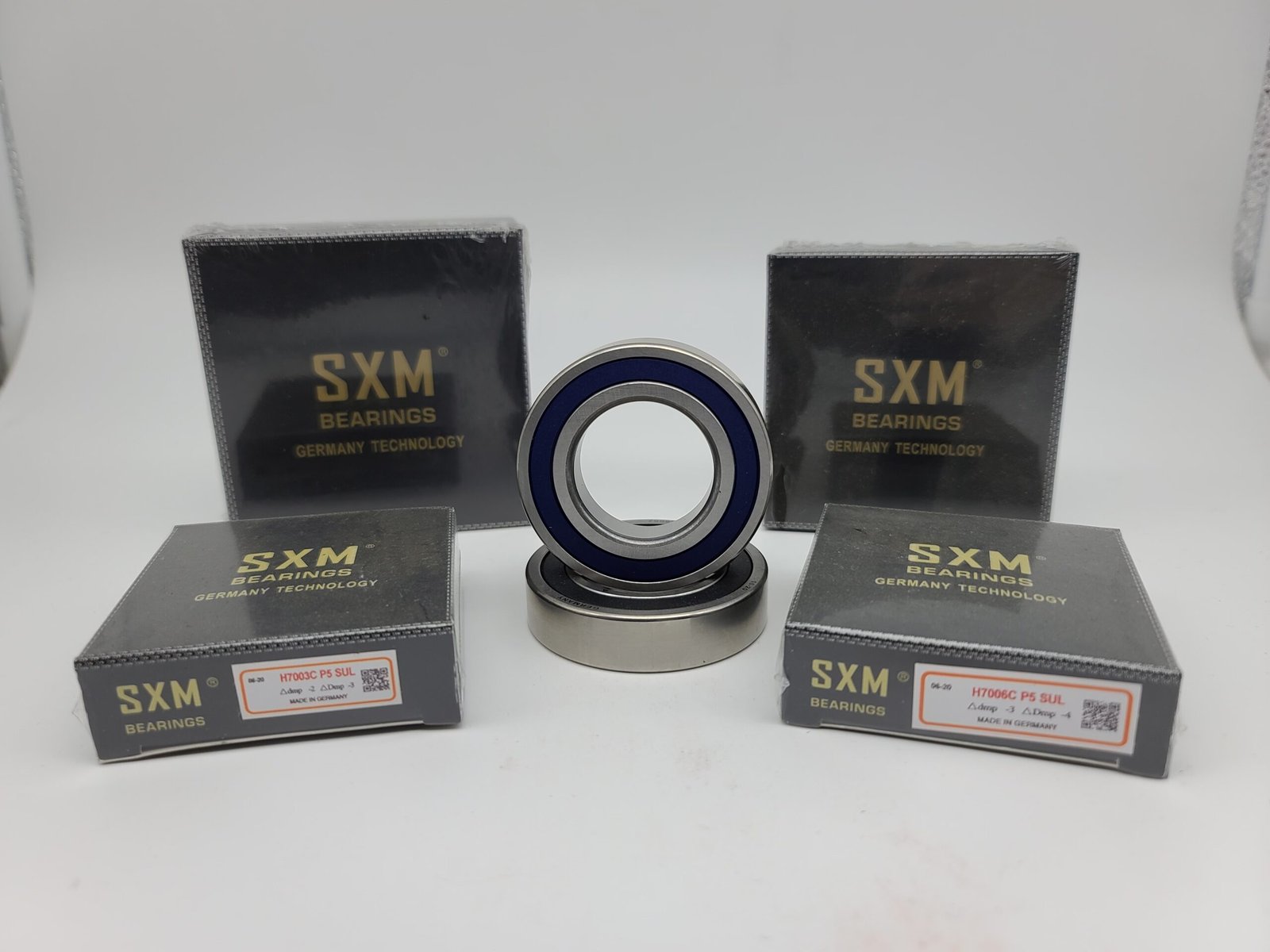

SXM is strict on the bearings out of our production,such as high precision angular contact ball bearing. Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis, which are designed to handle for combination radial and axial loading. The axial load carrying capacity of angular contact ball bearings will increase when the contact angle increase. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.



a. Inner diameter 5 -120mm
b. Contact angle 15° -25°
c. With the action of this angle, the force can be transmitted from one end to the other end to optimize the maximum speed
d. Able to bear large axial and radial load, paired use is necessary
e. There are more balls than deep groove ball bearings
f. Good load capacity
g. Ceramic composite bearings can be selected for all series and sizes
h. All ball bearings can be lubricated with grease
i. All bearings can be matched with inner diameter and outer diameter according to different needs


a.CNC machine spindle
b.High speed electric spindle
c.Servo motor
d.Engraving machine
e.Chemical fiber textile machine
g.Ball screw
h.Transmission shaft
i.Gear box etc…
