Additional information

Cage

Steel, nylon, brass, bronze

Bearing Type

Spherical roller beairng

Brand

SXM/OEM

Clearance

C2 C0 C3 C4 C5

Number of Row

Double row

Roller Material

Carbon ,bearing steel,chromium steel,etc

Seals Type

open or seal

Range (d)

20-400mm



SXM Spherical roller bearings consist of an inner ring with two raceways inclined at an angle to the bearing axis, an outer ring with a common spherical raceway, spherical rollers, cages and, in certain designs, also internal guide rings or center rings. The bearings can also be sealed. The spherical roller bearing is a rolling-element bearing that permits rotation with low friction, high resistance to impact, vibration, and mainly bear big radial load, also can bear fair axial load, etc.



spherical roller bearing

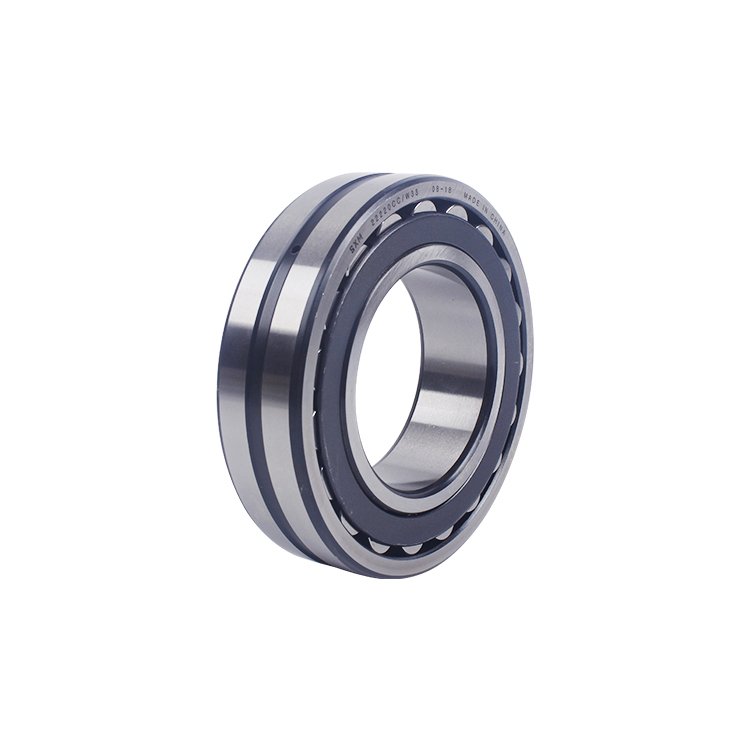

CC– bearings with symmetrical spherical rollers, guiding flanges on the inner ring, Two-piece steel cage guided on the inner ring between two-row spherical rollers.

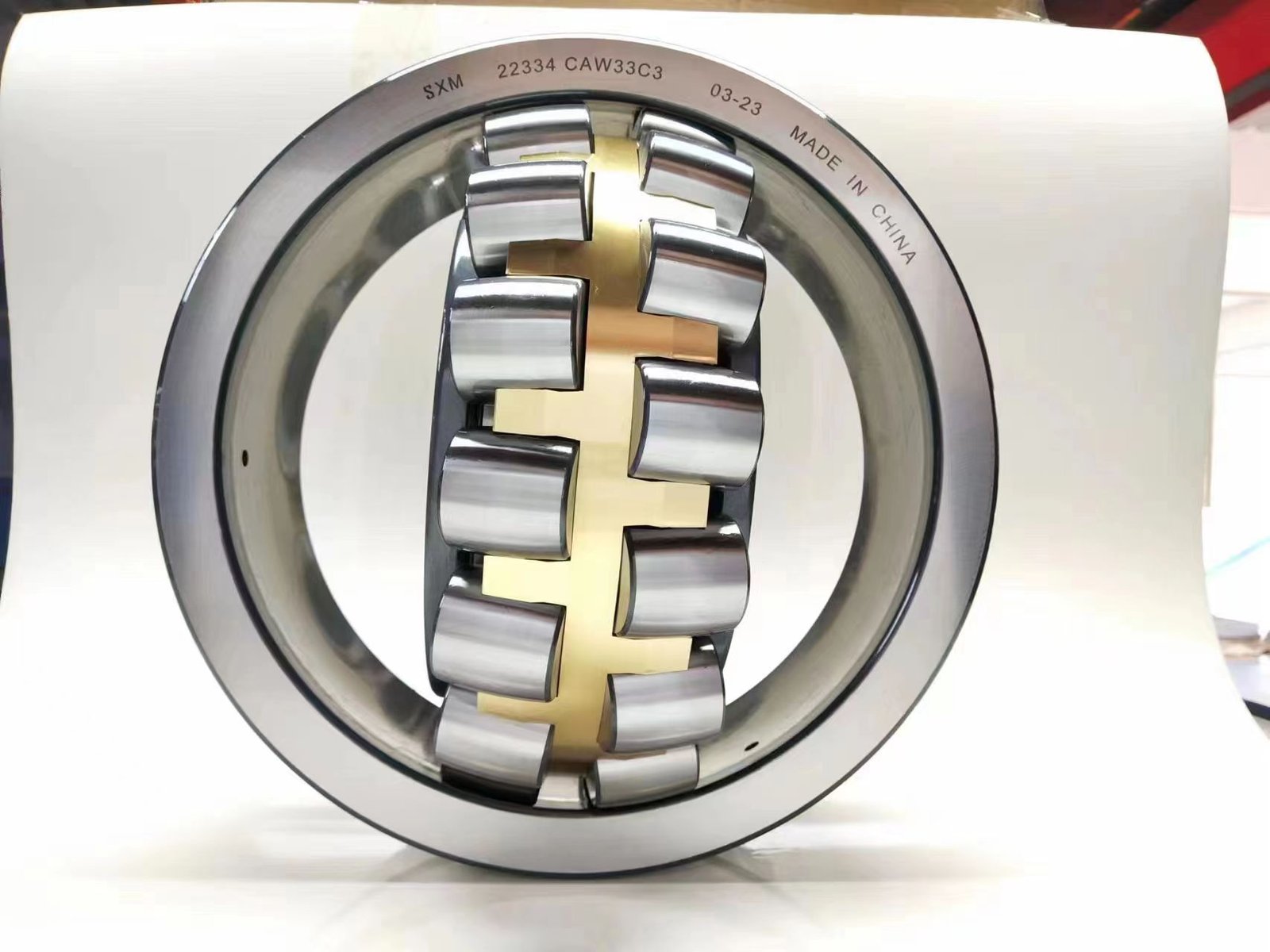

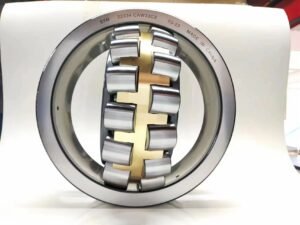

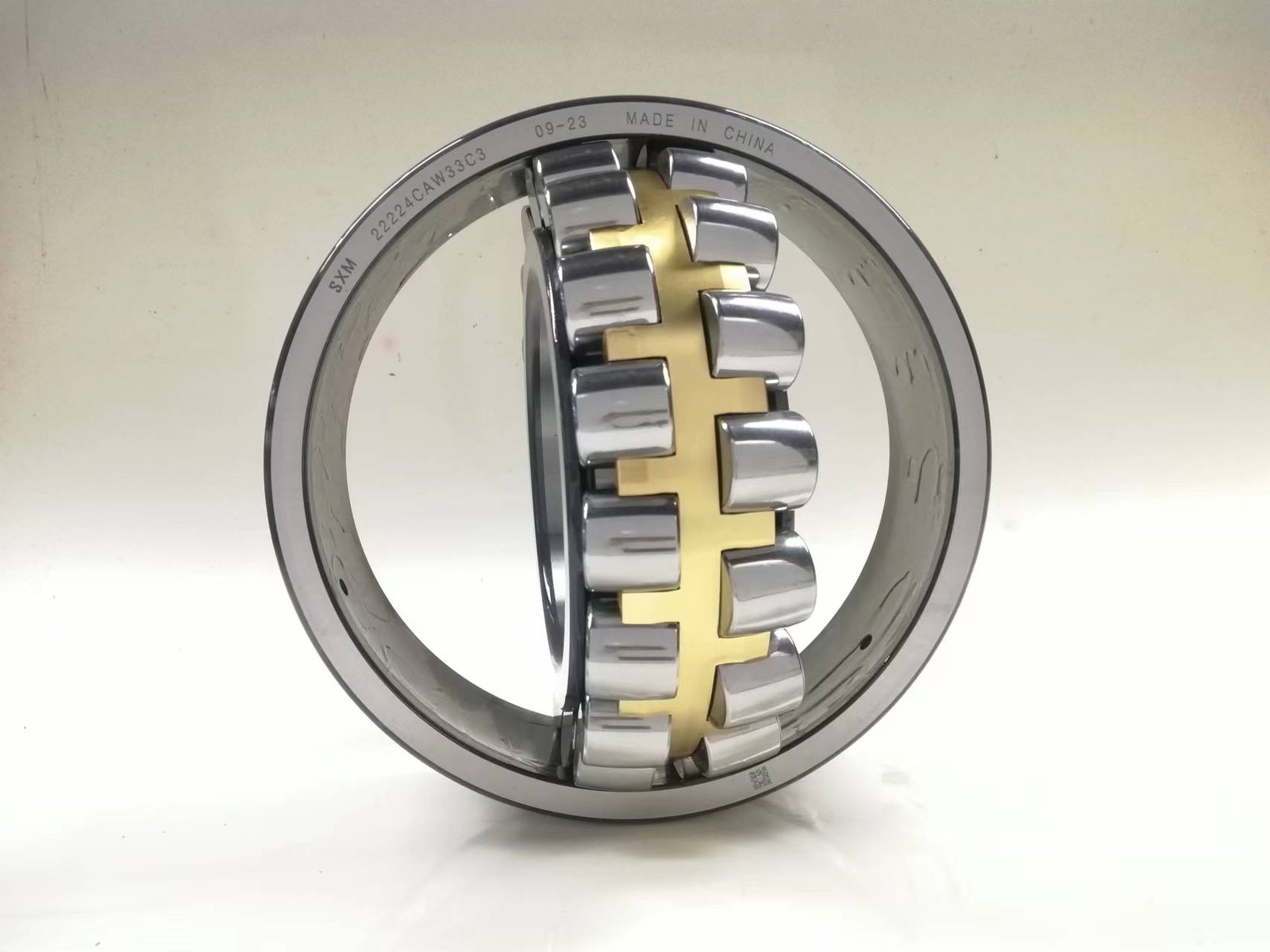

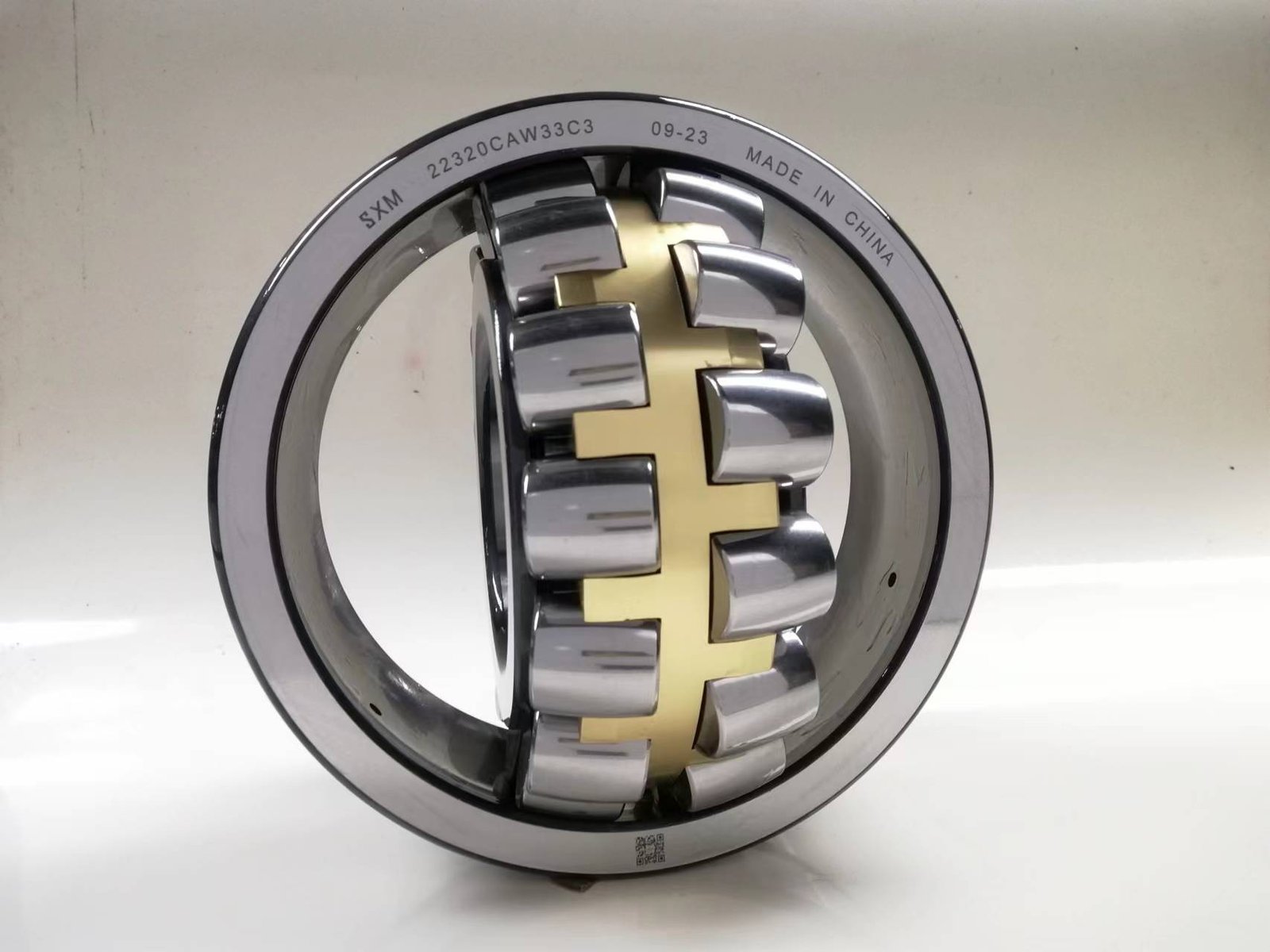

CA – bearings with symmetrical spherical rollers, guiding flanges on the inner ring, One-piece double-pronged solid brass cage centered on the inner ring between the two rows of spherical rollers.

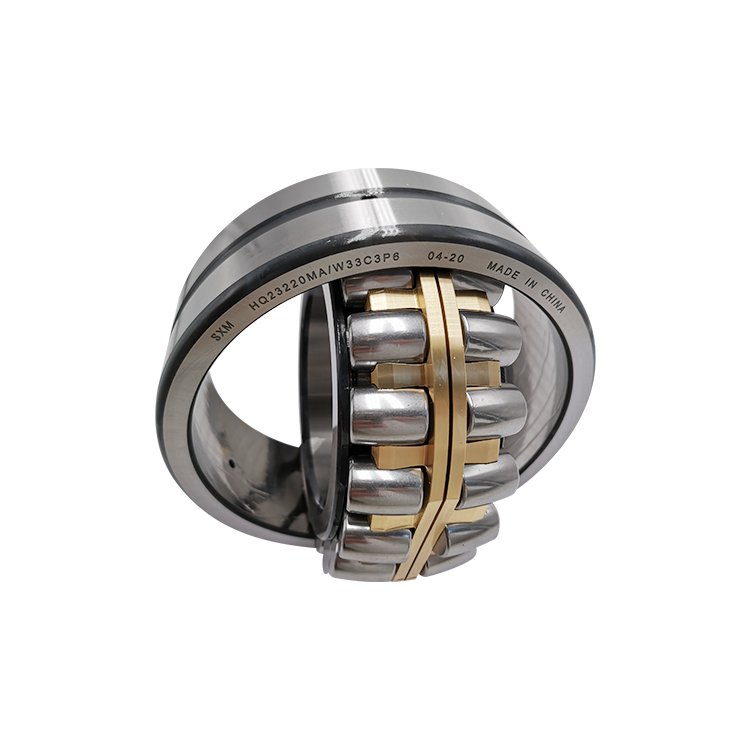

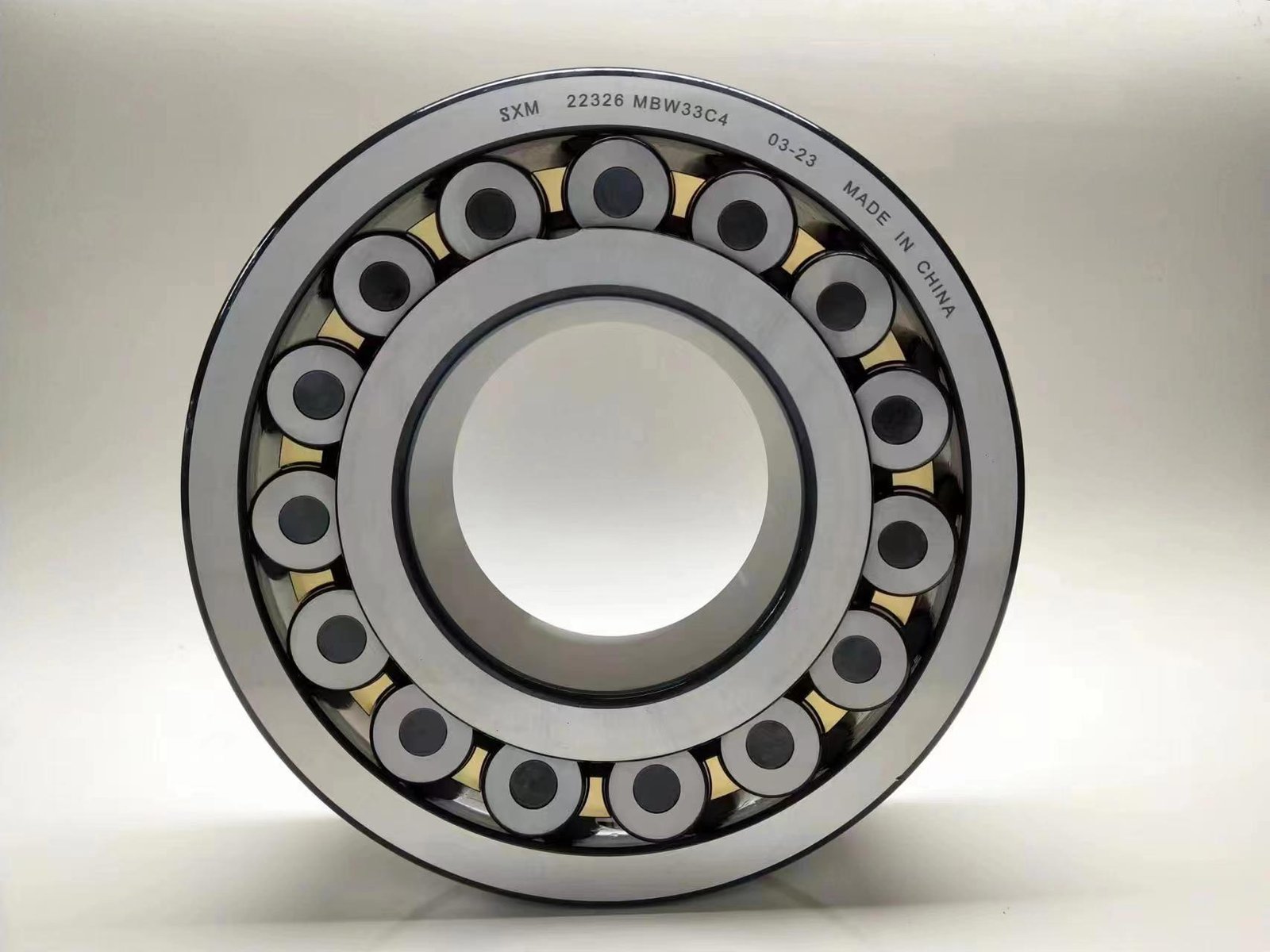

MB – bearings with symmetrical spherical rollers, guiding flanges on the inner ring. The bearing has two solid pronged brass cages guided on the fixed central flange of the inner ring.



Features:

a、High resistance to impact, vibration
b、Able to self-align
c、Mainly bear big radial load
d、Can bear axial load



Applications:

SXM bearings are widely used in mining, steel mill cement, wood pellet, petroleum, coal, metallurgy, paper, chemical engineering machinery, pory machinery and other industries, and they were approved to be replaced international brands.



Spherical bearings are widely used in countless industrial applications, where there are heavy loads, moderate speeds and possibly misalignment. Some common application areas:
a、Gearboxes & Reducers
b、Industrial Fans & Blowers
c、Continuous casting machines
d、Elevators & Escalators
e、Pumps
f、Textile
g、Mining, aggregate & Concrete
h、Pulp and paper processing equipment
i、Marine propulsion and offshore drilling



Cement Machinery BearingsCement Machinery Bearings



Main Spherical Roller Bearing Models:22218、22320、24024、23048、23156、230/530、241/900

—Contact us for more cement machinery bearings.





Mining Industry Bearings

ball mill-mining industry



Crusher Main Spherical Roller Bearing Models:22218、22320、23136、22344、23172、23244



Vibrating screen Main Spherical Roller Bearing Models:22309、22315、22330、22326、22319



Ball Mill Main Spherical Roller Bearing Models:23180 CAC3W33、 230/710 CAC3W33、230/600 CAC3W33

—Contact us for more mining industry bearings.





Paper Mill Bearings

paper mill

1. Vacuum roll

We recommend SXM 23076CA/C3W33,23096CA/C3W33 and 23330CA/C3W33.

2. Center press roll

We recommend SXM bearing 23192CAK/W33.

3. Dryer

We recommend SXM bearing 22236CK/P53S1W33-1.

—Contact us for more paper mill bearings.





Pellet Mill Bearings

Main Spherical Roller Bearing Models: 24124、22224、29428、24134、24040CCW33、22218 CAKW33、23130CAW33

—Contact us for more pellet mill bearings.





Port Lifting Equipment Bearings



Main Spherical Roller Bearing Models:22216、22320、22340、22212、22236、22222、22338

Bucket-wheel stacker and reclaimer, conveyor belt idler, mainly use 23140CAK/W33, 23144CAK/W33, 23148CAK/W33, 23152CAK/W33, 23156CAK/W33 Spherical Roller Bearings, also use 6306-2RS /C3 Deep Groove Ball Bearing. Container port cranes mainly use 22218C 22220C 22222C Spherical Roller Bearing.

—Contact us for more port lifting equipment bearings.





Steel Mill Bearings

steel mill



Main Spherical Roller Bearing Models:23130CAW33、22217CA/W33、24056CA/W33、23220CA/W33、21315CA/C4W33S1、22212CA/W33

—Contact us for more steel mill bearings.





Flexible inspection way:

flexible inspection way





5-star comments:

5star comment





Package:

Catalog & Technical Data

Designation Mass Dimensions Basic Load rating Limiting
Speed
Reference Speed
m d D B C Co r/min r/min
kg mm mm mm N N
22218 3.38 90 160 40 278000 358000 2800 3600
23230 24 150 270 96 963000 1560000 950 1300
23056 50.9 280 420 106 1580000 3030000 700 900
23060 71.4 300 460 118 1910000 3800000 670 850
23064 84.7 320 480 121 800000 900000 338 462
23068 115 340 520 133 1980000 4400000 700 900
23072 255 360 600 192 3250000 6850000 590 700
23084 156 420 620 150 3372500 5890000 1260 660
24084 206 420 620 200 4370000 8075000 880 470
23184 349 420 700 224 5700000 9120000 940 460
24184 427 420 700 280 7030000 11970000 560 270
23284 546 420 760 272 7410000 11685000 840 345
23088 180 440 650 157 3657500 6460000 1190 620
24088 240 440 650 212 4845000 9025000 840 440
23188 366 440 720 226 5890000 9690000 940 435
24188 442 440 720 280 7220000 12255000 560 260
23288 602 440 790 280 7885000 12540000 840 325
23092 205 460 680 163 3990000 7030000 1190 590
24092 271 460 680 2181 5225000 9690000 780 415
23192 440 460 760 240 6555000 10925000 880 400
24192 534 460 760 300 8170000 13965000 500 239
23292 708 460 830 296 8740000 13965000 780 300
23096 215 480 700 165 4132500 7410000 1120 560
24096 281 480 700 218 5320000 10165000 780 390
23196 489 480 790 248 7030000 11780000 840 380
24196 591 480 790 308 8645000 14915000 500 226
23296 819 480 870 310 9500000 15390000 740 280
240/500 291 500 720 218 5415000 10545000 780 375
231/500 582 500 830 264 7885000 13205000 780 355
241/500 697 500 830 325 9595000 16530000 475 209
230/530 304 530 780 185 5035000 9120000 980 490
240/530 406 530 780 250 6650000 12825000 700 340
231/530 648 530 870 272 8455000 14250000 780 330
241/530 784 530 870 335 10260000 18335000 475 191
230/560 353 560 820 195 5510000 10260000 980 455
240/560 461 560 820 258 7125000 13870000 670 315
231/560 746 560 920 280 9215000 15580000 740 305
241/560 921 560 920 355 11495000 20140000 450 177
232/560 1360 560 1030 365 12920000 20710000 630 223
230/600 399 600 870 200 5985000 10925000 940 425
240/600 539 600 870 272 7885000 15770000 630 290
232/600 1610 600 1090 388 14440000 24225000 600 198
240/630 649 630 920 290 8930000 17670000 600 265
240/670 786 670 980 308 9975000 20045000 530 244
232/670 2290 670 1220 438 18050000 30875000 530 165
240/750 1050 750 1090 335 11970000 24225000 500 209
